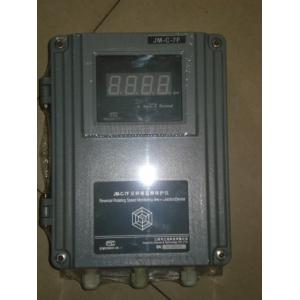

JM-C-7F Water Proof Hanging on Wall Reversal Rotating Digital Speed Indicator Protection Device IP55
Jiangling Measurement and control technology stock Co., ltd
JM-C-6C 2 out of 3 Rotating Over-speed Monitoring and Protection Device
JM-C-3 Series Intelligent Rotating Speed Monitoring and Protection Device
JM-C-7F Hanging on Wall Reversal Rotating Speed Monitoring and Protection Device
JM-C-6C 2 out of 3 Rotating Over-speed Monitoring and Protection Device
JM-C-5S Rotating Speed Monitoring and Protection Device
User
This hanging on wall style intelligent vibration monitoring and protection device has a aluminum die casting chassis, whitch make this device get a IP55 protection level. It mainly applies to power generation, iron and steel, metallurgy, chemical industry and other fields, it can continually monitor rotating speed in various rotating mechanisms, to help users understand the operation of equipment and do maintenance.
Functions
1. Highly Intelligent, all parameters can be set on a control panel.
2. Suitable for on-line monitoring for a long time, easy to install and debug, needing no site maintenance.
3. With hanging on the wall structure and aluminum die casting chassis, it has a protection level of IP55.
4. 2 level alarm switch output. 5. 4～20mA analog current output..
6. Free configurations of measuring range and alarm value.
7. Real time TDM signals output
8. Automatic record and inquirie of maximum sample value.
9. F-R rotating monitoring and protection.
Technical Parameters
1. Display mode: Digital LED display.
2. Measuring range: 0～9999 r/ min
3. Measuring accuracy: ±1 r/ min
4. Tooth number: Any number between 1～120 (factory number 60)
5. Input signal: 2 CS-3 sensor signals, CS-3F sensor signal
6. Output signal: Current output 4～20mA (load≤1KΩ)
2 level switch output: DC 27V/2A or AC250V/5A
PULSE signal output (12V peak-peak)
7. Environmental temperature: -10～65℃ (Relative humidity:≤85%)
8. Power votage: AC 220V/50Hz±10%
9. Installation: Hanging on walls
10．External dimension:240mm(length)×190mm(width)
11．Installation hole size and pattern:275mm(length)×170mm(width) (diameter : Φ5mm)
Orders Gulde
JM-C-7F－A□□－B□□□□
A: Sensor selection 01: CS-3 active rotary speed sensor,02: CS-3F reverse rotary speed sensor
03: CWY-DO-Φ8mm eddy current sensor
B: Measuring range selection Measuring range is 0－9999rpm, e.g. 4000＝4000rpm
Example: the order code for 4000rpm-measuring-range wall-hung reverse rotary speed protector with active rotary speed sensor is:JM-C-7F-01-4000.
